Classification Equipment For Sewerage Sludgeg and dredging sludge

Process Description:

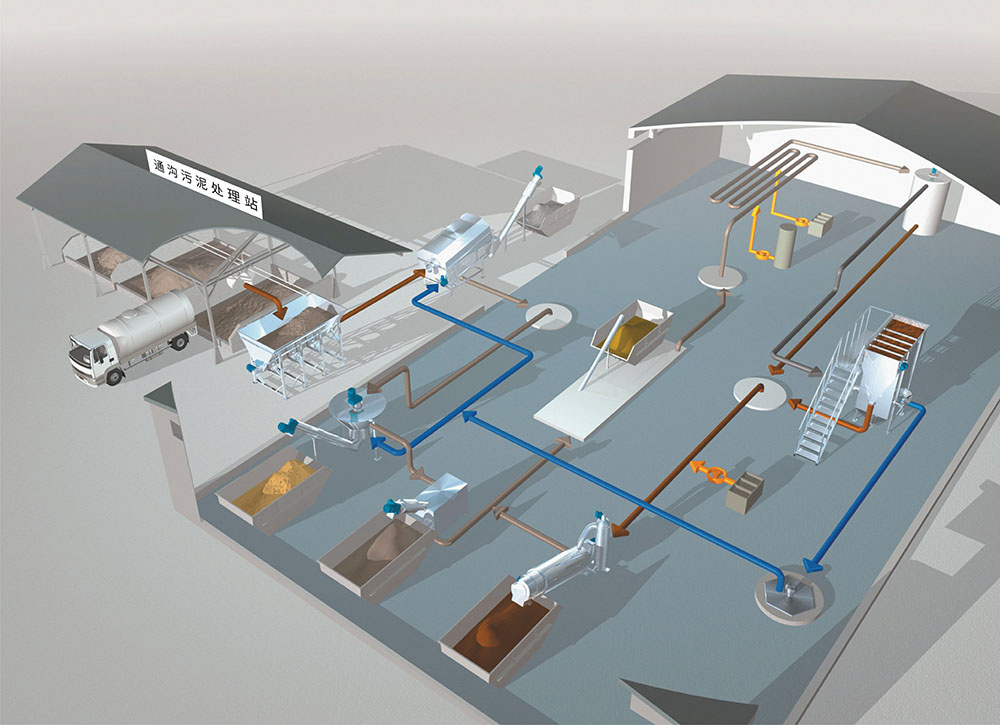

The dredging/mud treatment process system consists of several stages: coarse material separation, sand separation and recovery, dust sludge dewatering and reduction, and circulating water purification and reuse. After processing, the cleaned waste is sequentially separated into four types of materials: coarse materials, clean sand, dewatered mud cakes, and circulating water.

Technical  Features:

• The sludge is separated and processed in an orderly manner, achieving effective disposal and resource recovery.
• The process is fully automated, efficient, and reliable.
• After sand separation, the organic content is reduced to 3%, which can be used for sand resource recovery in construction.
• The process water is recycled, effectively reducing operating costs and saving water resources.
• The system is modular, allowing for on-site installation with minimal work.
• Zhiduoxing separation devices replace traditional solid-liquid separation devices, achieving high processing capacity.
• The system has a large processing capacity, capable of handling 50-80 tons of sludge per day.
• The system occupies a small area, with equipment area ≤ 200m².
